Redarc Alpha | 70 Series Toyota LandCruiser Kit

from $1,245.00

REDARC Dual Battery Charger Kit | Accessory Harness | Battery Tray

A complete pre wired dual battery charger install kit for the 70 series Toyota LandCruiser, suits VDJ 79 76 78 series From 2007 to 2023

USING THE NEW AUSTRALIAN MADE REDARC ALPHA BCDC CHARGER AND SOLAR CONTROLLER WITH A GENUINE ANDERSON PLUG TO ACCEPT SOLAR DIRECTLY. IT’S THE ONLY DC-DC CHARGER THAT CAN BOTH CHARGE AND RECOVER YOUR START BATTERY AT A PUSH OF A BUTTON.

FEATURING 25A OF ADVANCED CHARGING TECHNOLOGY, THIS DC TO DC CHARGER KEEPS YOUR START AND SECONDARY BATTERIES CHARGED USING POWER FROM YOUR VEHICLE’S ALTERNATOR OR SOLAR. THE BCDC ALPHA'S BUILT IN GREEN POWER PRIORITY™ WILL PRIORITISE SOLAR INPUT, MINIMISING THE LOAD ON YOUR ALTERNATOR AND SAVING FUEL.

STAY INFORMED AND MONITOR THE BCDC ALPHA’S CHARGE STATUS IN REAL-TIME THROUGH BLUETOOTH AND THE REDVISION SMARTPHONE APP.


FEATURES

  • 25A CHARGING FROM DC AND SOLAR POWER

  • COMPATIBLE WITH ALL COMMON BATTERY TYPES INCLUDING LITHIUM (LIFEPO4)

  • IP67/69K DUST AND MOISTURE PROTECTION

  • EASY INSTALLATION WITH PUSHBUTTON INTERFACE

  • CHARGE BACK TO YOUR START BATTERY WITH EXCESS SOLAR

  • RECOVER A FLAT START BATTERY WITH THE PUSH OF A BUTTON

  • REMOTE MONITORING AND CONTROL FROM THE REDVISION APP WITH BLUETOOTH

  • PROTECT YOUR VEHICLE’S ALTERNATOR WITH ADJUSTABLE INPUT CURRENT LIMIT

  • FUTURE PROOF CHARGING WITH OVER-THE-AIR UPDATES


THE KIT COMES WITH THE REDARC CHARGER PRE WIRED WITH SOLDERED AND HEAT SHRUNK CONNECTIONS, NO JOINS REQUIRED. FULL COLOUR DIGITAL INSTRUCTIONS WITH PICTURES AND VIDEO TUTORIALS ARE SUPPLIED TO ASSIST WITH THE INSTALL, AS WELL AS HARD COPIES OF THE REDARC BCDC INSTRUCTIONS AND THE REDARC BRACKET INSTRUCTIONS.

Optional Extras:

Accessory Harness: 7m cable to suit your model that runs to the rear of the vehicle and mounts a socket housing. Your choice of sockets (Cig, USB, Engel, Volt meter or single Anderson in flip up cover) they can be customised to suit your needs. Please select your preference at checkout.

Please visit Accessory Harness product page for more details

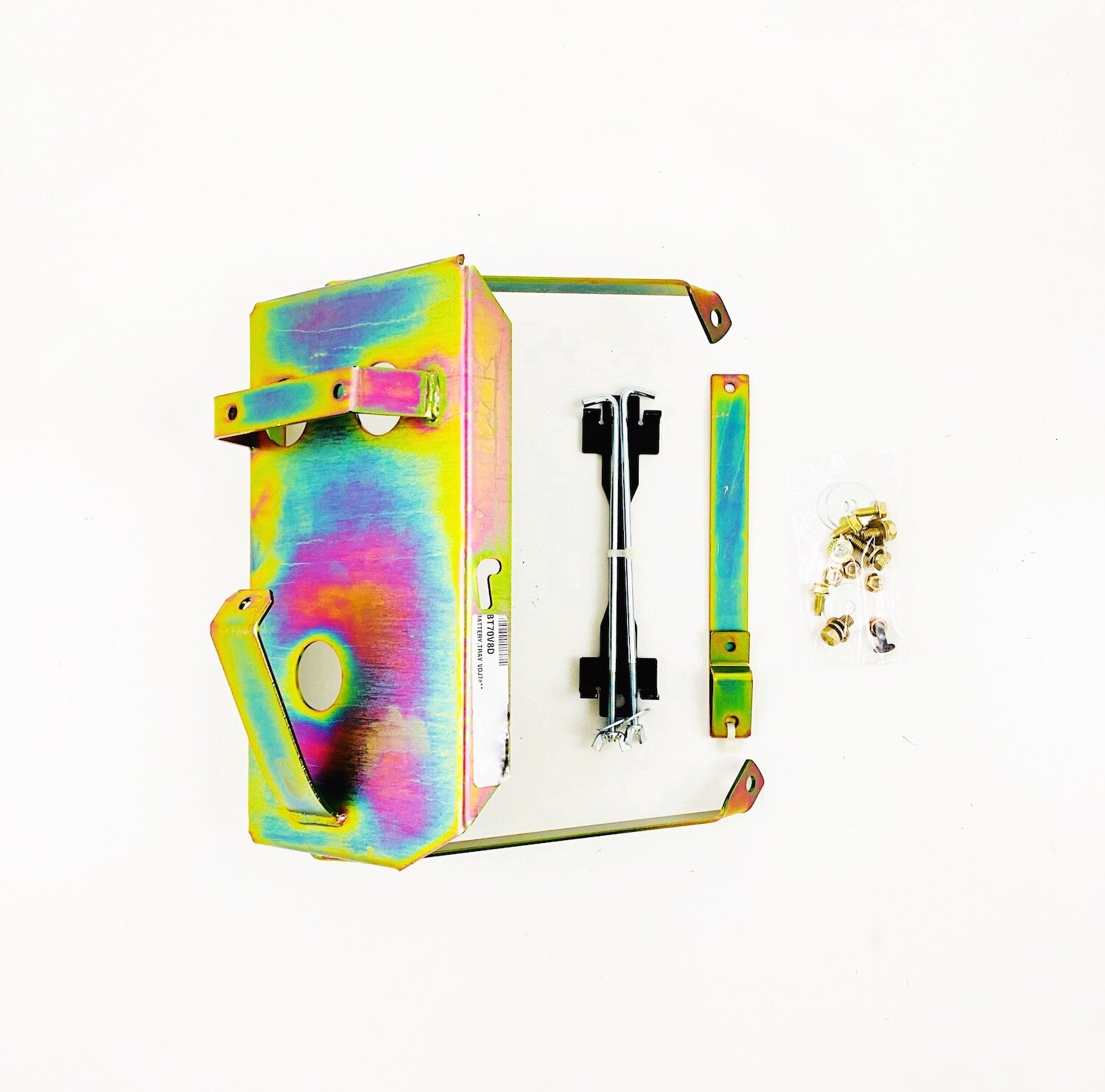

Battery Tray: Piranha off-road vehicle specific battery tray. (please see fitting guide for details of installation)

DOWNLOAD: Piranha Fitting Guide - BT70V8D16 -October 2016on V8

DOWNLOAD: Piranha Fitting Guide - BT70V8DABS- Aug 2012on with ABS

DOWNLOAD: Piranha Fitting Guide - BT70V8D - Mar 2007 - Jul 2012

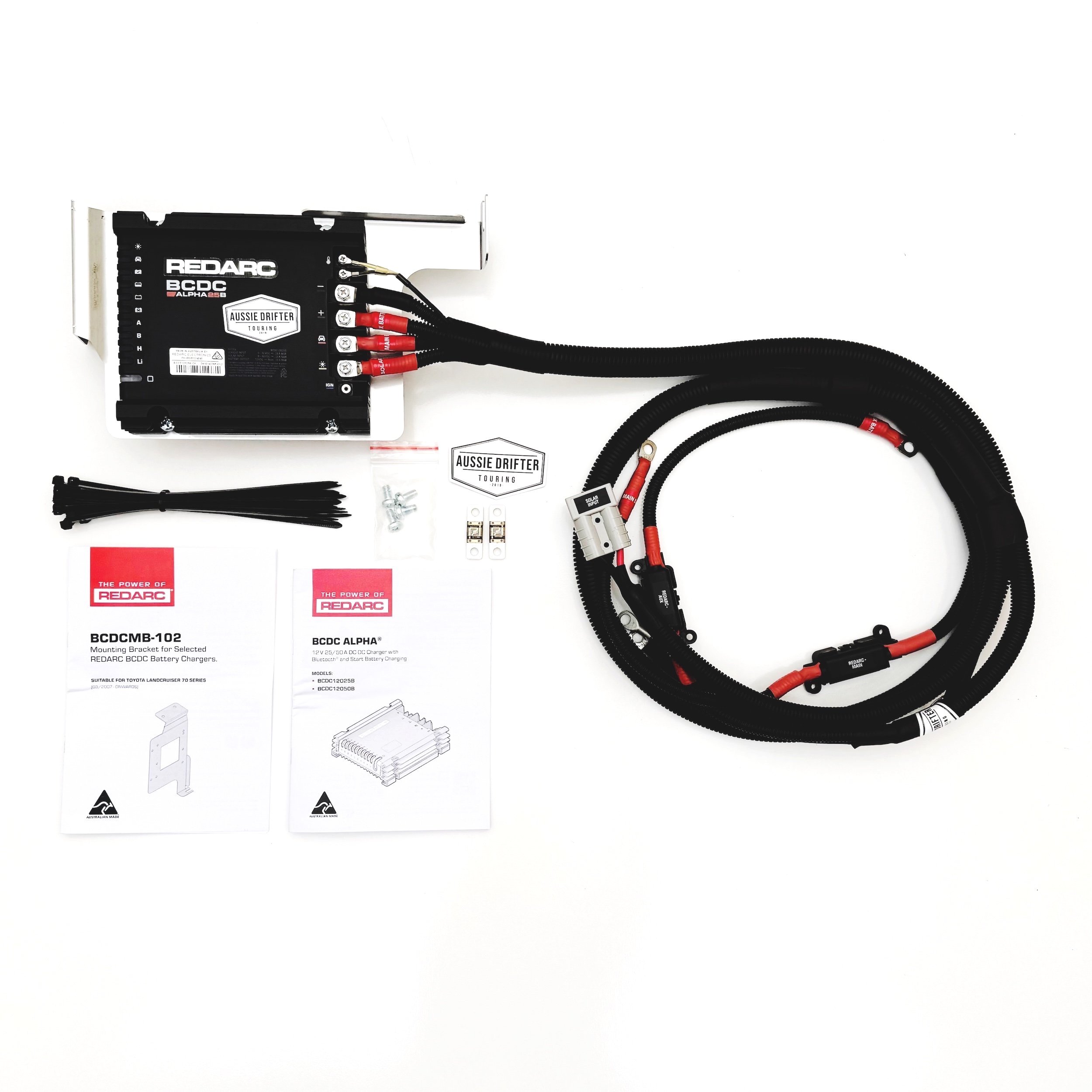

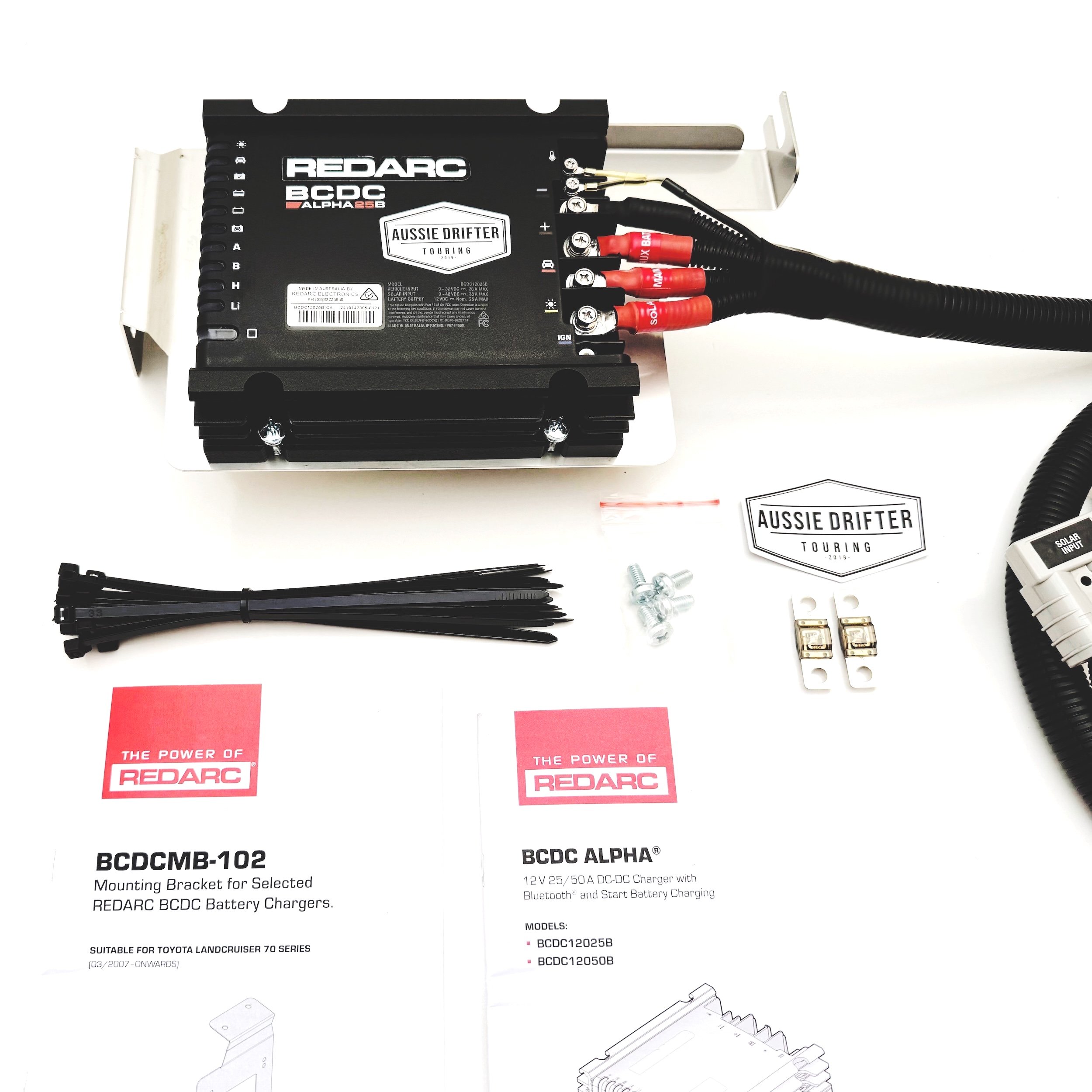

Kit Includes:

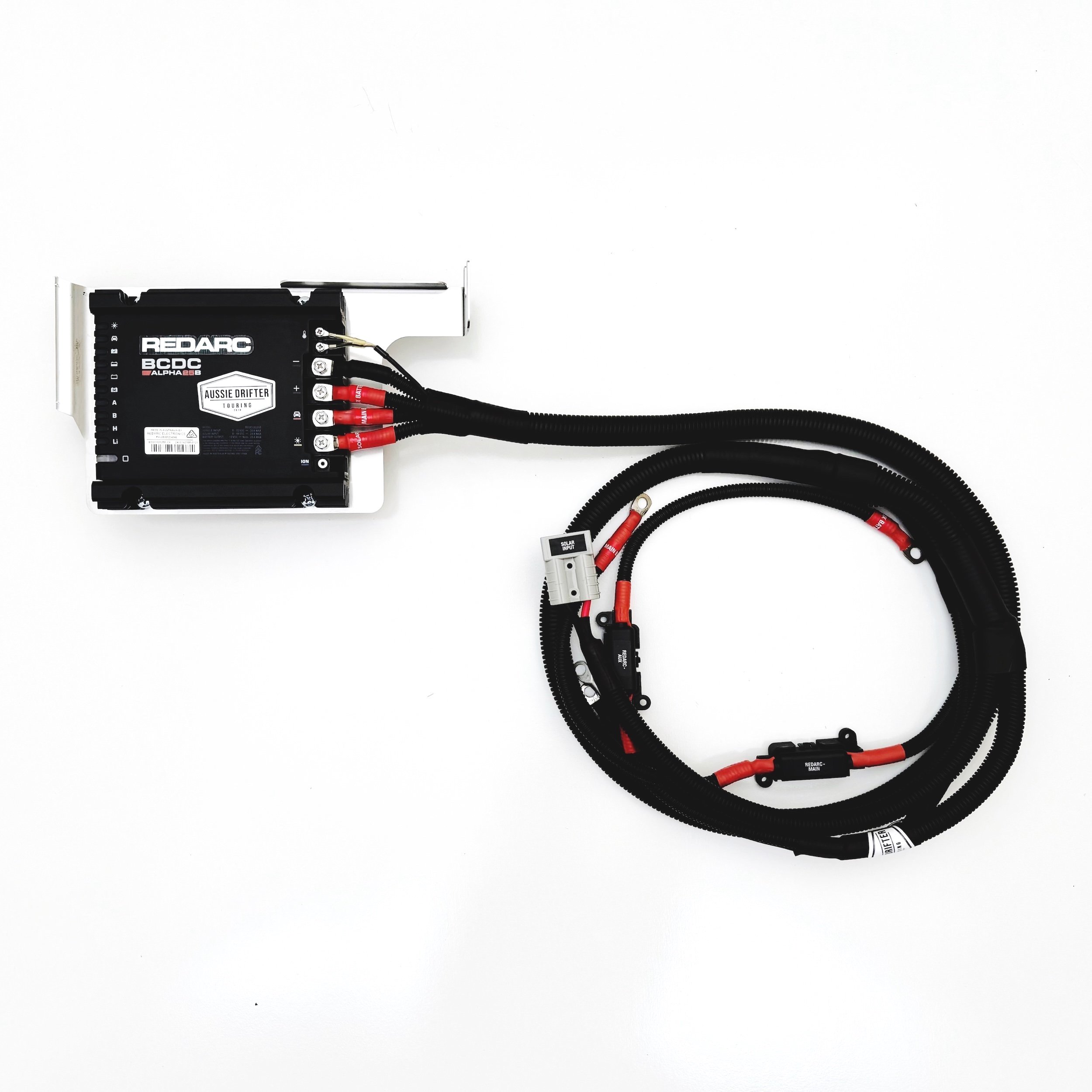

  • REDARC ALPHA BCDC pre wired to length to reach auxiliary and start batteries

  • Genuine Anderson plug for unregulated 12v solar input

  • Redarc BCDC steel laser cut mounting bracket (BCDCMB-102)

  • 2x Midi fuse holders and fuses

  • All nuts bolts and screws required for install

  • Cable ties for attaching wiring loom

  • REDARC instruction booklets

  • Digital instructions with video tutorials for install

    DOWNLOAD: 70 Series Installation Instructions

    DOWNLOAD: Redarc Bracket Instructions BCDCMB-102

    Optional Extras:

  • 7m accessory harness with prewired cable

  • Fuses, cable ties and screws to assist with installation

  • Piranha 4x4 battery tray

Having trouble understanding the options? Click here - Watch Video Tutorial

BCDC:
Accessory Harness:
Battery Tray:
Bluetooth Battery Monitor (not suitable for lithium):

REDARC Dual Battery Charger Kit | Accessory Harness | Battery Tray

A complete pre wired dual battery charger install kit for the 70 series Toyota LandCruiser, suits VDJ 79 76 78 series From 2007 to 2023

USING THE NEW AUSTRALIAN MADE REDARC ALPHA BCDC CHARGER AND SOLAR CONTROLLER WITH A GENUINE ANDERSON PLUG TO ACCEPT SOLAR DIRECTLY. IT’S THE ONLY DC-DC CHARGER THAT CAN BOTH CHARGE AND RECOVER YOUR START BATTERY AT A PUSH OF A BUTTON.

FEATURING 25A OF ADVANCED CHARGING TECHNOLOGY, THIS DC TO DC CHARGER KEEPS YOUR START AND SECONDARY BATTERIES CHARGED USING POWER FROM YOUR VEHICLE’S ALTERNATOR OR SOLAR. THE BCDC ALPHA'S BUILT IN GREEN POWER PRIORITY™ WILL PRIORITISE SOLAR INPUT, MINIMISING THE LOAD ON YOUR ALTERNATOR AND SAVING FUEL.

STAY INFORMED AND MONITOR THE BCDC ALPHA’S CHARGE STATUS IN REAL-TIME THROUGH BLUETOOTH AND THE REDVISION SMARTPHONE APP.


FEATURES

  • 25A CHARGING FROM DC AND SOLAR POWER

  • COMPATIBLE WITH ALL COMMON BATTERY TYPES INCLUDING LITHIUM (LIFEPO4)

  • IP67/69K DUST AND MOISTURE PROTECTION

  • EASY INSTALLATION WITH PUSHBUTTON INTERFACE

  • CHARGE BACK TO YOUR START BATTERY WITH EXCESS SOLAR

  • RECOVER A FLAT START BATTERY WITH THE PUSH OF A BUTTON

  • REMOTE MONITORING AND CONTROL FROM THE REDVISION APP WITH BLUETOOTH

  • PROTECT YOUR VEHICLE’S ALTERNATOR WITH ADJUSTABLE INPUT CURRENT LIMIT

  • FUTURE PROOF CHARGING WITH OVER-THE-AIR UPDATES


THE KIT COMES WITH THE REDARC CHARGER PRE WIRED WITH SOLDERED AND HEAT SHRUNK CONNECTIONS, NO JOINS REQUIRED. FULL COLOUR DIGITAL INSTRUCTIONS WITH PICTURES AND VIDEO TUTORIALS ARE SUPPLIED TO ASSIST WITH THE INSTALL, AS WELL AS HARD COPIES OF THE REDARC BCDC INSTRUCTIONS AND THE REDARC BRACKET INSTRUCTIONS.

Optional Extras:

Accessory Harness: 7m cable to suit your model that runs to the rear of the vehicle and mounts a socket housing. Your choice of sockets (Cig, USB, Engel, Volt meter or single Anderson in flip up cover) they can be customised to suit your needs. Please select your preference at checkout.

Please visit Accessory Harness product page for more details

Battery Tray: Piranha off-road vehicle specific battery tray. (please see fitting guide for details of installation)

DOWNLOAD: Piranha Fitting Guide - BT70V8D16 -October 2016on V8

DOWNLOAD: Piranha Fitting Guide - BT70V8DABS- Aug 2012on with ABS

DOWNLOAD: Piranha Fitting Guide - BT70V8D - Mar 2007 - Jul 2012

Kit Includes:

  • REDARC ALPHA BCDC pre wired to length to reach auxiliary and start batteries

  • Genuine Anderson plug for unregulated 12v solar input

  • Redarc BCDC steel laser cut mounting bracket (BCDCMB-102)

  • 2x Midi fuse holders and fuses

  • All nuts bolts and screws required for install

  • Cable ties for attaching wiring loom

  • REDARC instruction booklets

  • Digital instructions with video tutorials for install

    DOWNLOAD: 70 Series Installation Instructions

    DOWNLOAD: Redarc Bracket Instructions BCDCMB-102

    Optional Extras:

  • 7m accessory harness with prewired cable

  • Fuses, cable ties and screws to assist with installation

  • Piranha 4x4 battery tray

Having trouble understanding the options? Click here - Watch Video Tutorial
