DIY Dual Battery Kit for the Toyota Prado 250

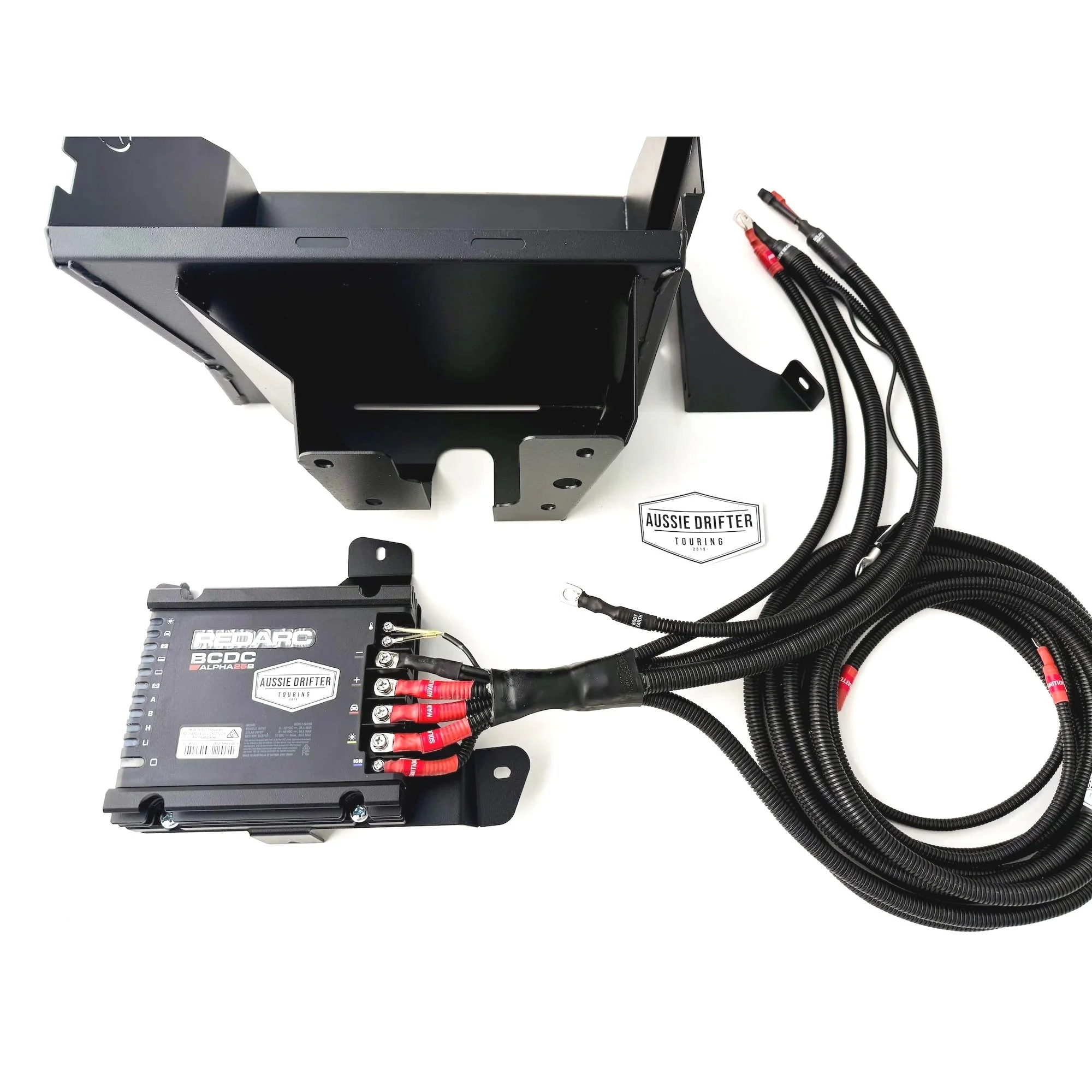

A pre wired Redarc BCDC dual battery charger kit.

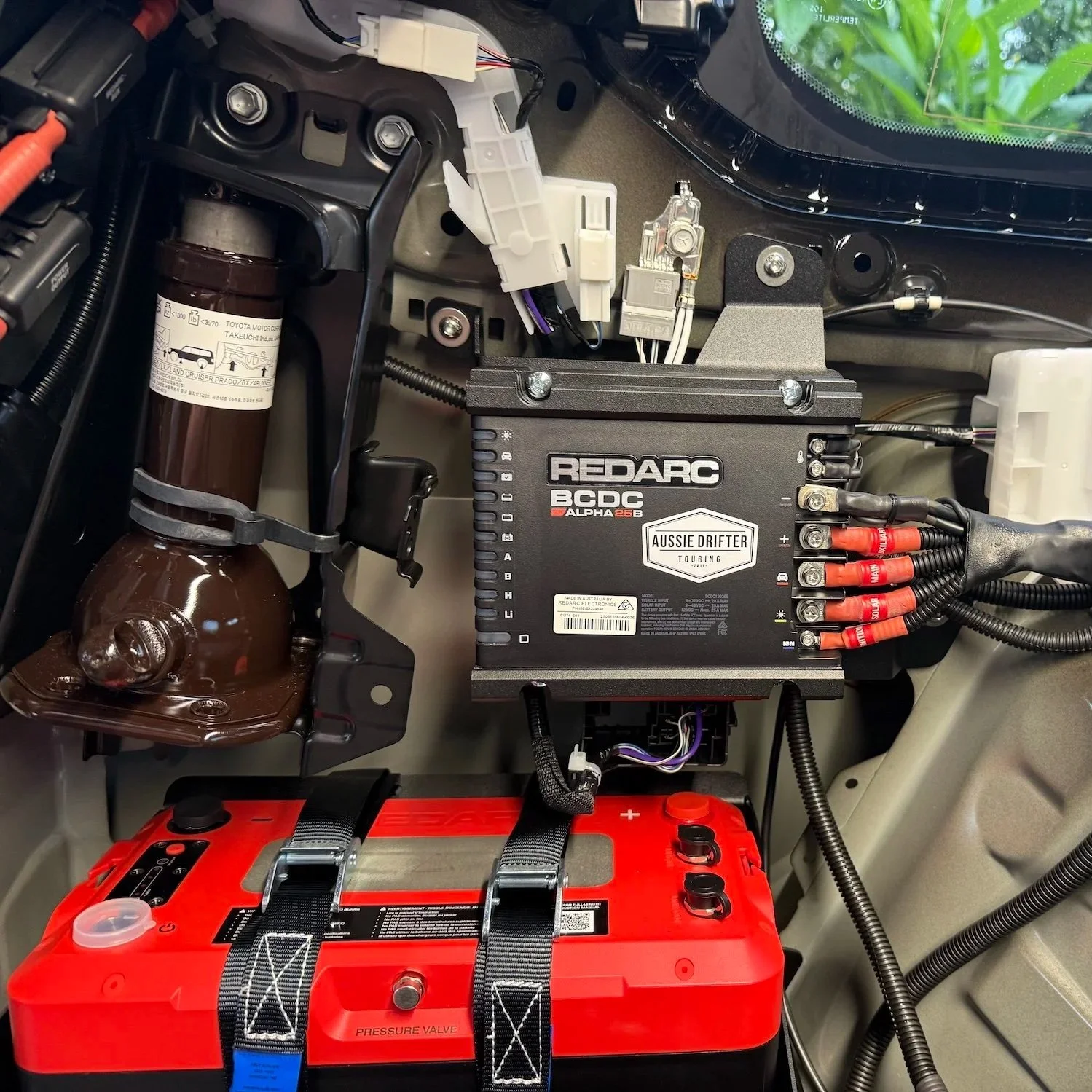

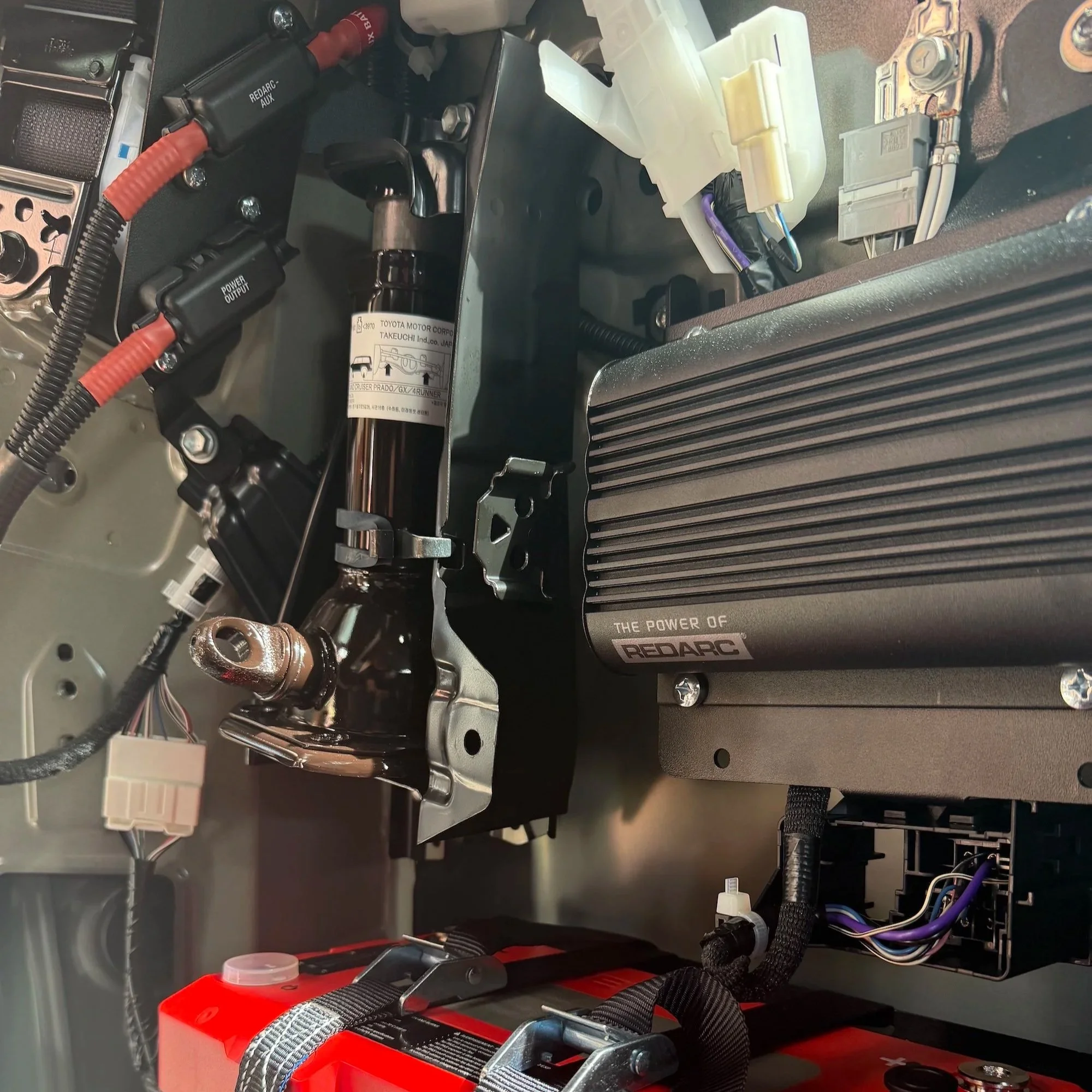

Using the renowned Australian made REDARC Alpha or Classic BCDC charger and solar controller with Genuine Anderson plug to accept solar directly. The kit comes with the Redarc charger pre wired with soldered and heat shrunk connections, no joins required.

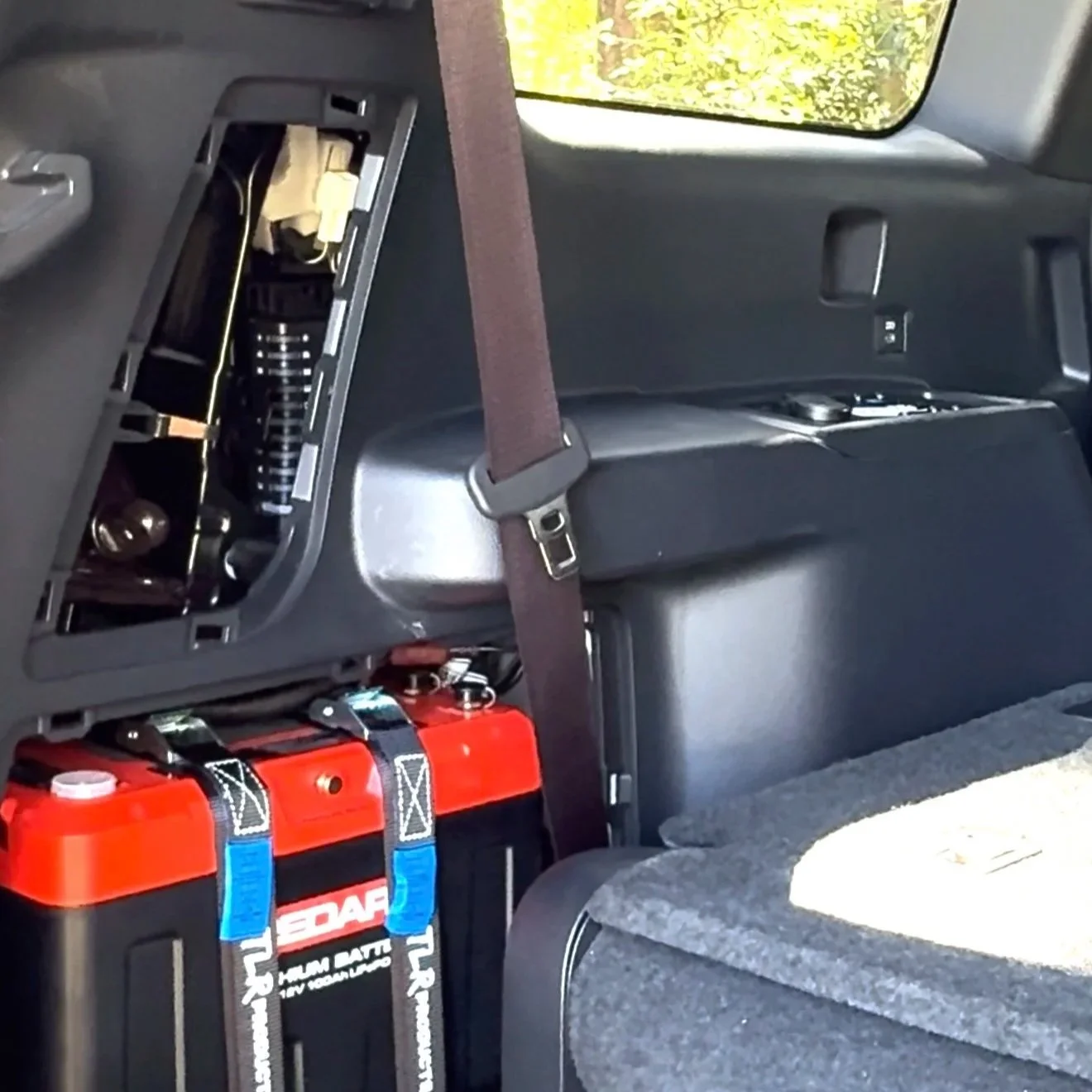

The TLR Products battery tray is designed to fit in the rear inner guard of the boot, leaving the valuable cargo space free. The kit comes with a battery tray that fits most 100Ah batteries, BCDC mounting bracket and fuse holder to secure 2 midi fuses.

The design utilises all factory mounting points including 4 x M8 structural bolts through the floor member to provide a secure mount, this means no drilling of the body work required for installation.

Internal Battery tray Dimensions:

• 316mm (L) x 173mm (W) x 250mm (H) Note: height restriction based on opening.

Confirmed batteries that fit include: (Battery Not Included)

• REDARC Icon 100ah Lithium – LBATN12100

• REDARC 100ah Deep Cycle Lithium – LBAT12100

• Invicta Xero 100ah Lithium – SNLX12V100BT

• Invicta Black 100ah Lithium – SNLB12V100BT

• Revolution HD 100ah Lithium – RPL12-100OT

• Century 105ah AGM Deep Cycle – C12-105XDA (148140)

• Full River 105ah AGM Deep Cycle – DC105-12

DOWNLOAD: TLR Products Installation Guide

Optional Extras

Accessory Harness:

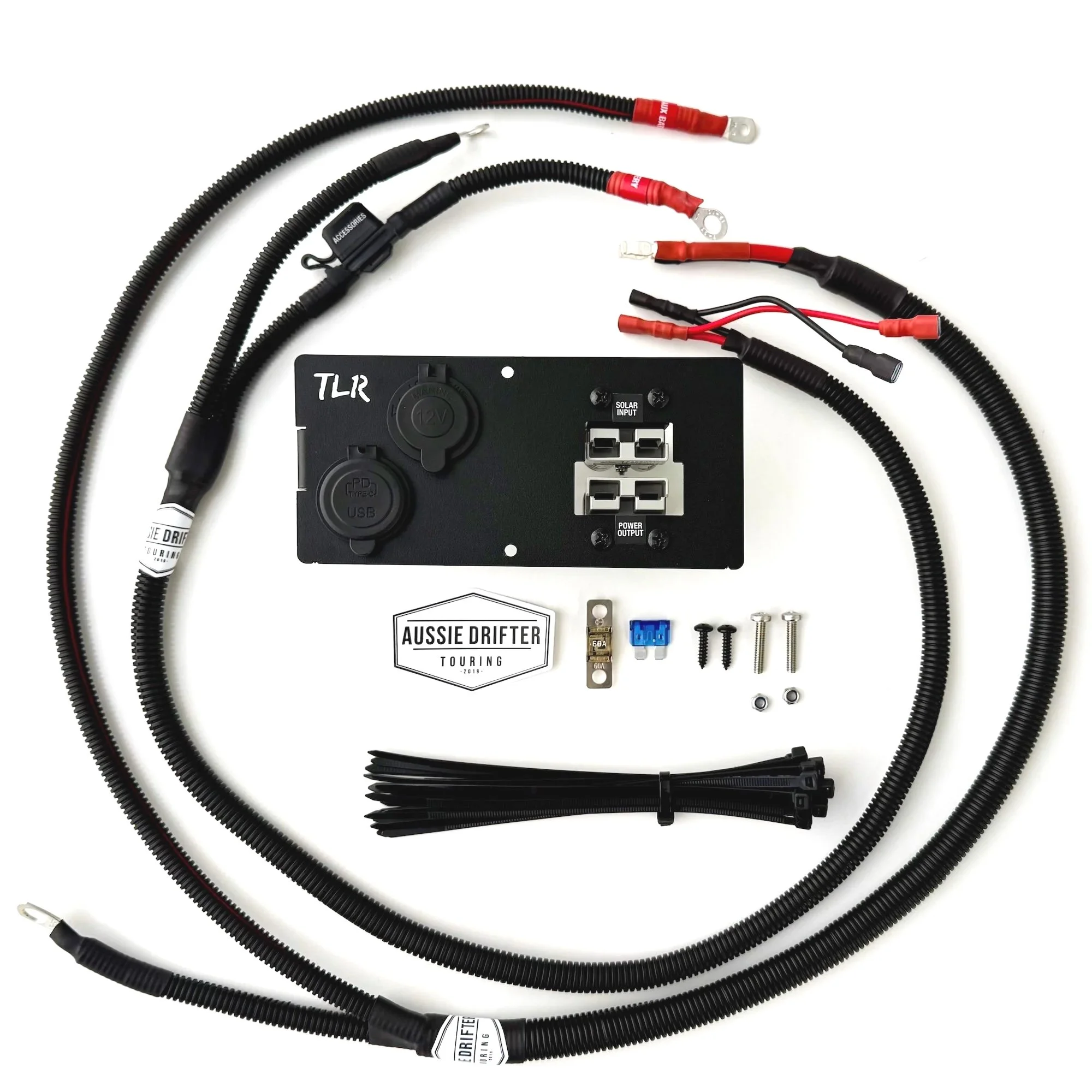

• TLR Electrical Sockets Mount

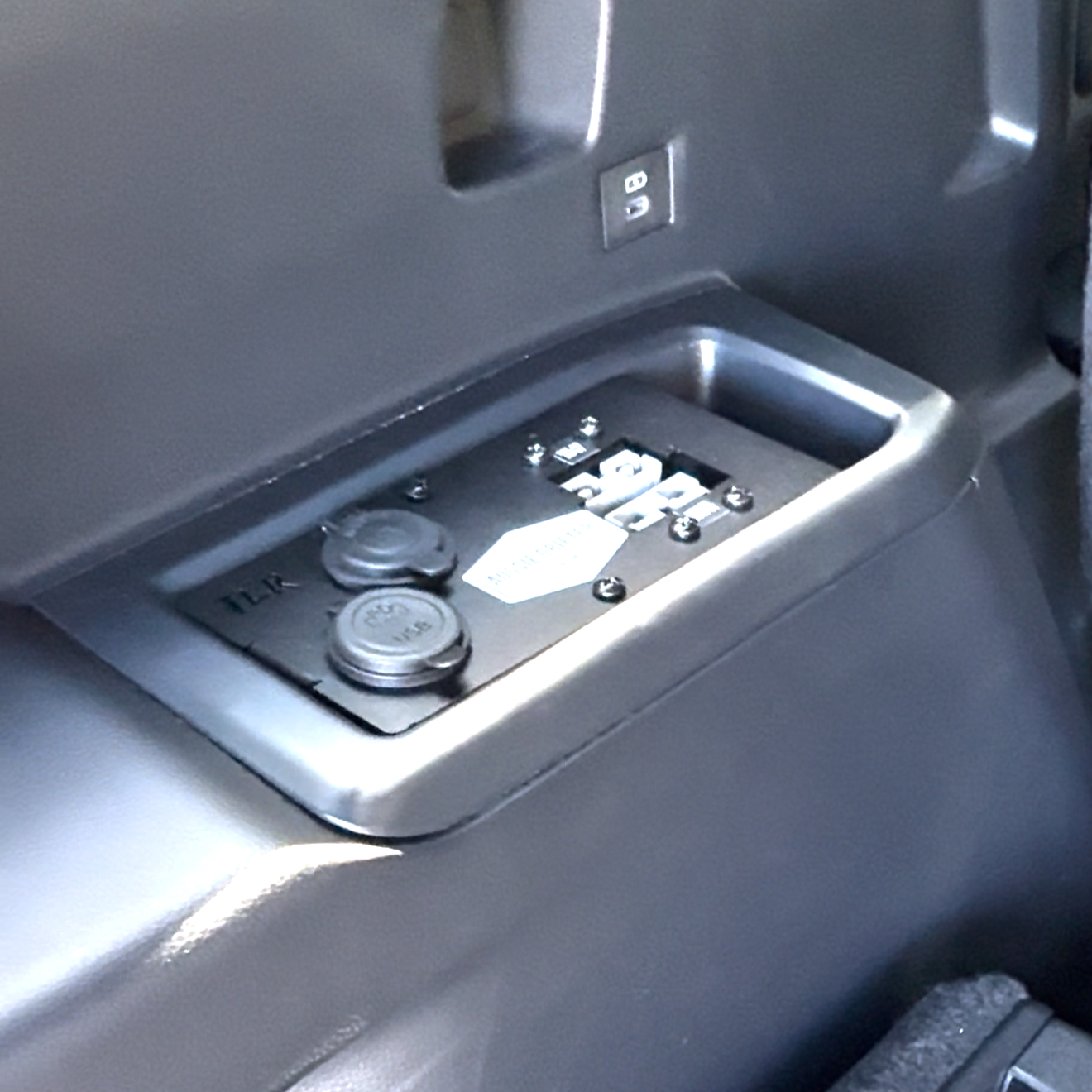

Designed by TLR Products to fit within the dual cupholder on the rear passenger side. Mounting 2 x round sockets (customisable to suit your needs, select options at checkout) and 2 x Genuine Anderson plugs. You can customise your Anderson options too, available are Solar Input and 50a Power Input.

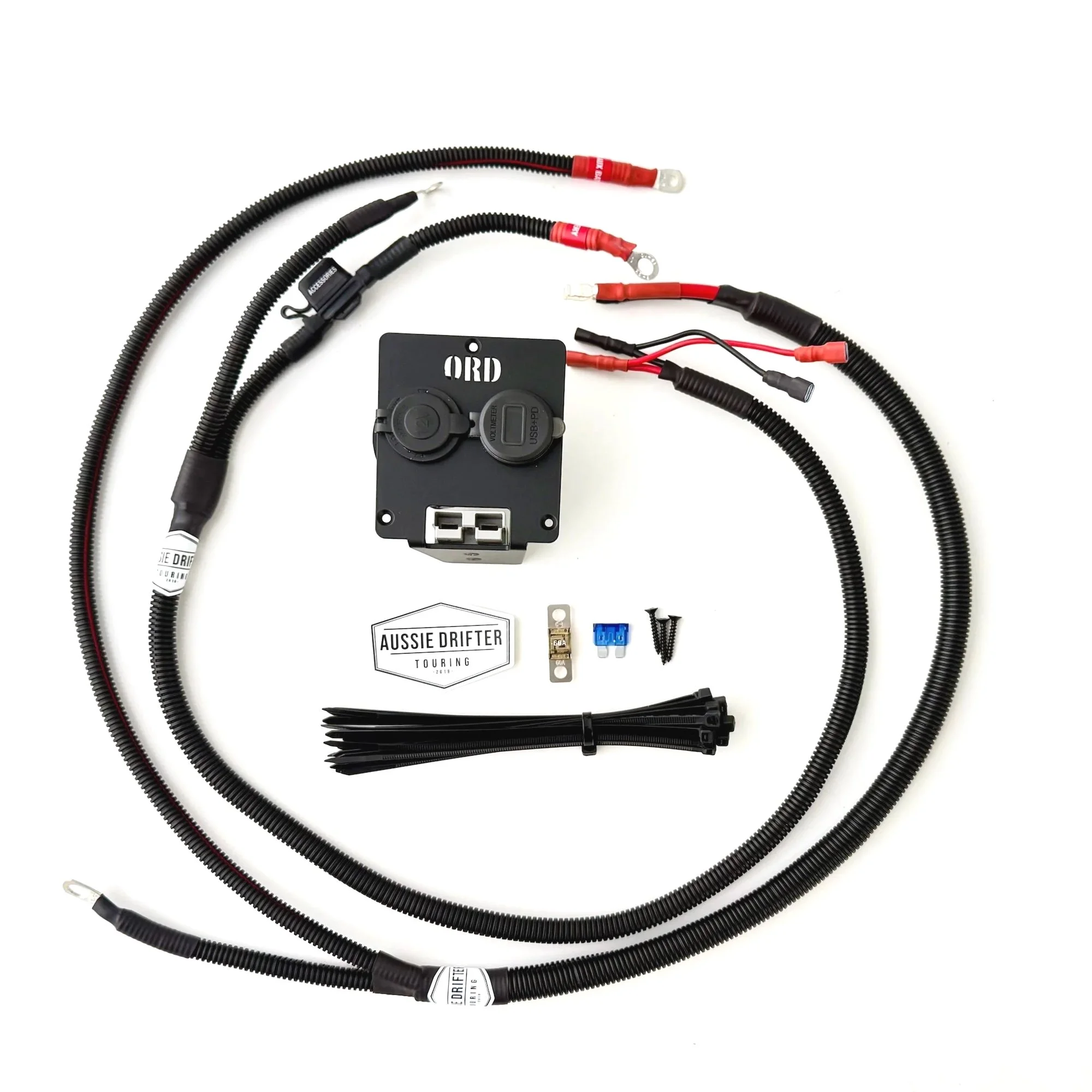

• ORD Power Socket Panel

Designed by Off Road Downunder to fit within in one of the cupholders on the rear passenger side. Mounting 2 x round sockets (customisable to suit your needs, select options at checkout) and 1 x Genuine Anderson plug. You can customise your Anderson options too, available as a Solar Input or Power Input.

Kit Includes:

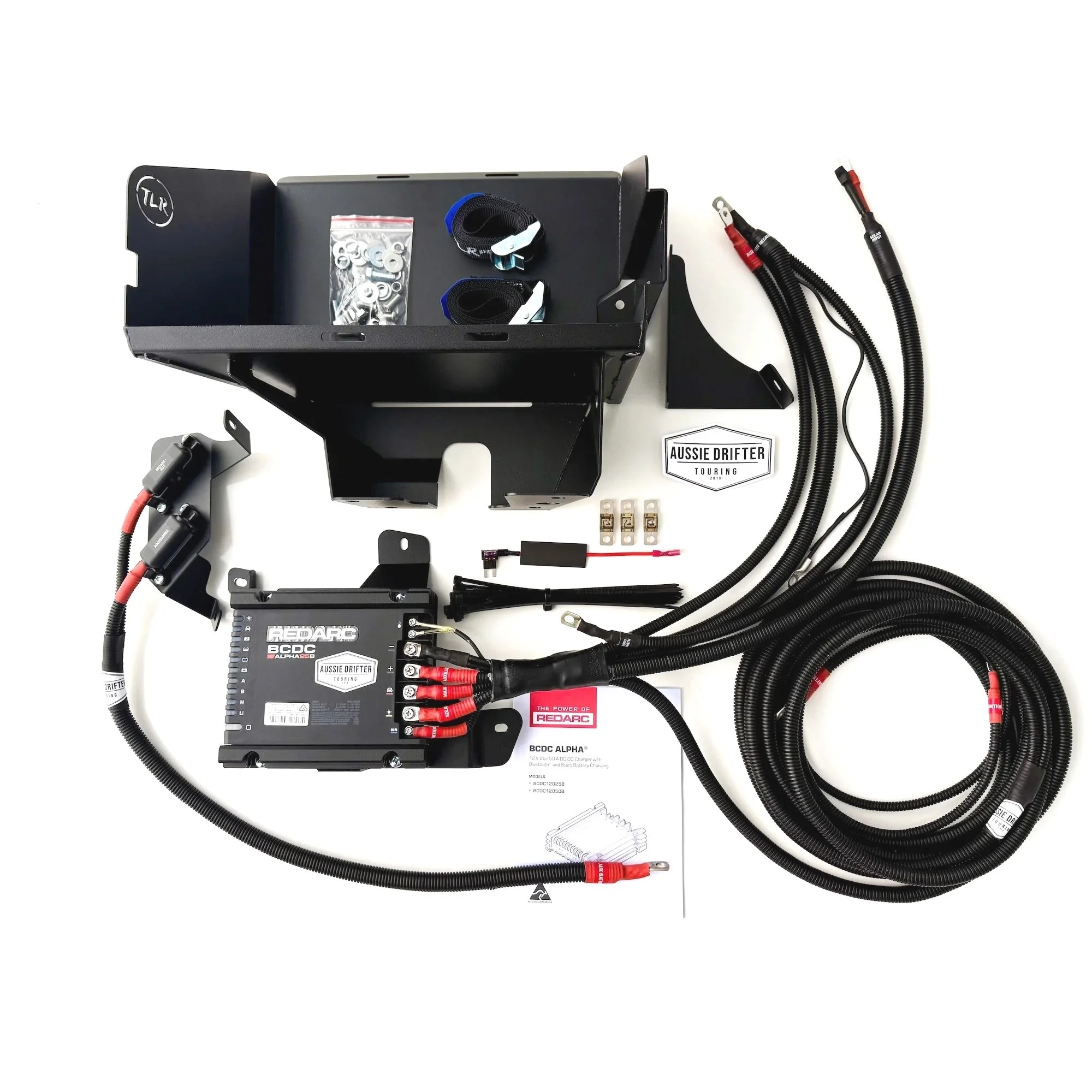

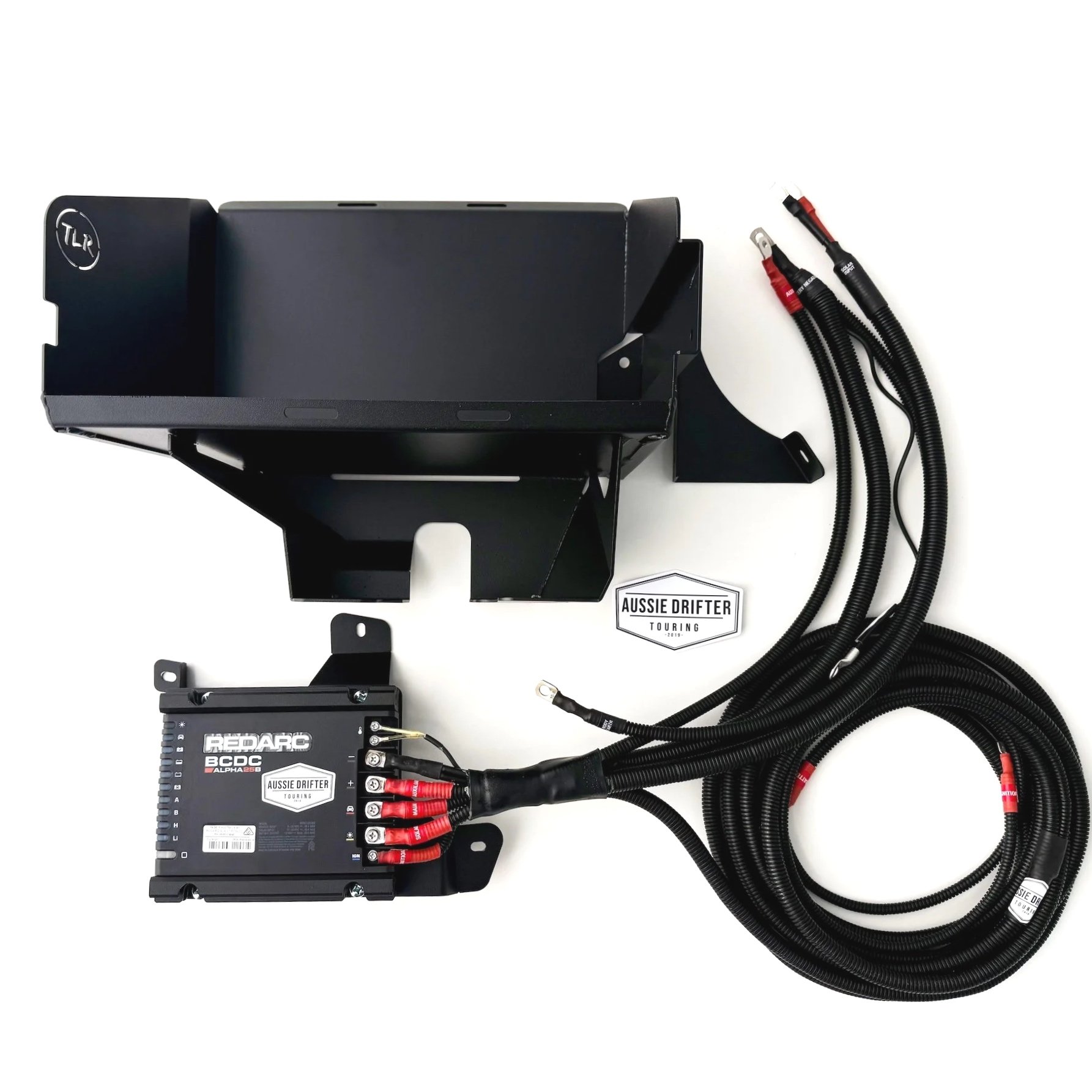

• REDARC charger pre wired to length to reach both start and aux battery

• Genuine Anderson plug for unregulated 12v solar input

• TLR Products battery tray, BCDC mounting plate, midi fuse holder plate

• 2x Midi fuse holders and fuses

• “Add a circuit” fuse holder with prewired harness

• All accessories required for install

• REDARC instruction booklet

• Digital instructions with video tutorials for install

Optional Extras:

• TLR or ORD Cupholder Accessory Panel

• Sockets of choice (CIG, USB, Engel, Merit, Volt)

• Genuine 50A Andersons

• Fuses, cable ties and screws to assist with installation

Having trouble understanding the options? Click here - Watch Video Tutorial
